Record Surgical Videos :
Capture surgical endoscopy procedure directly into USB Drive or Hard disk.
Mini Display Screen :
Real-time visualization of surgical events on a high-resolution screen, enabling immediate review and documentation.
Connect to Endoscopy and Laparoscopic Camera :
Take Videos and Images from Endoscopy Camera through HDMI to DVI Cable.

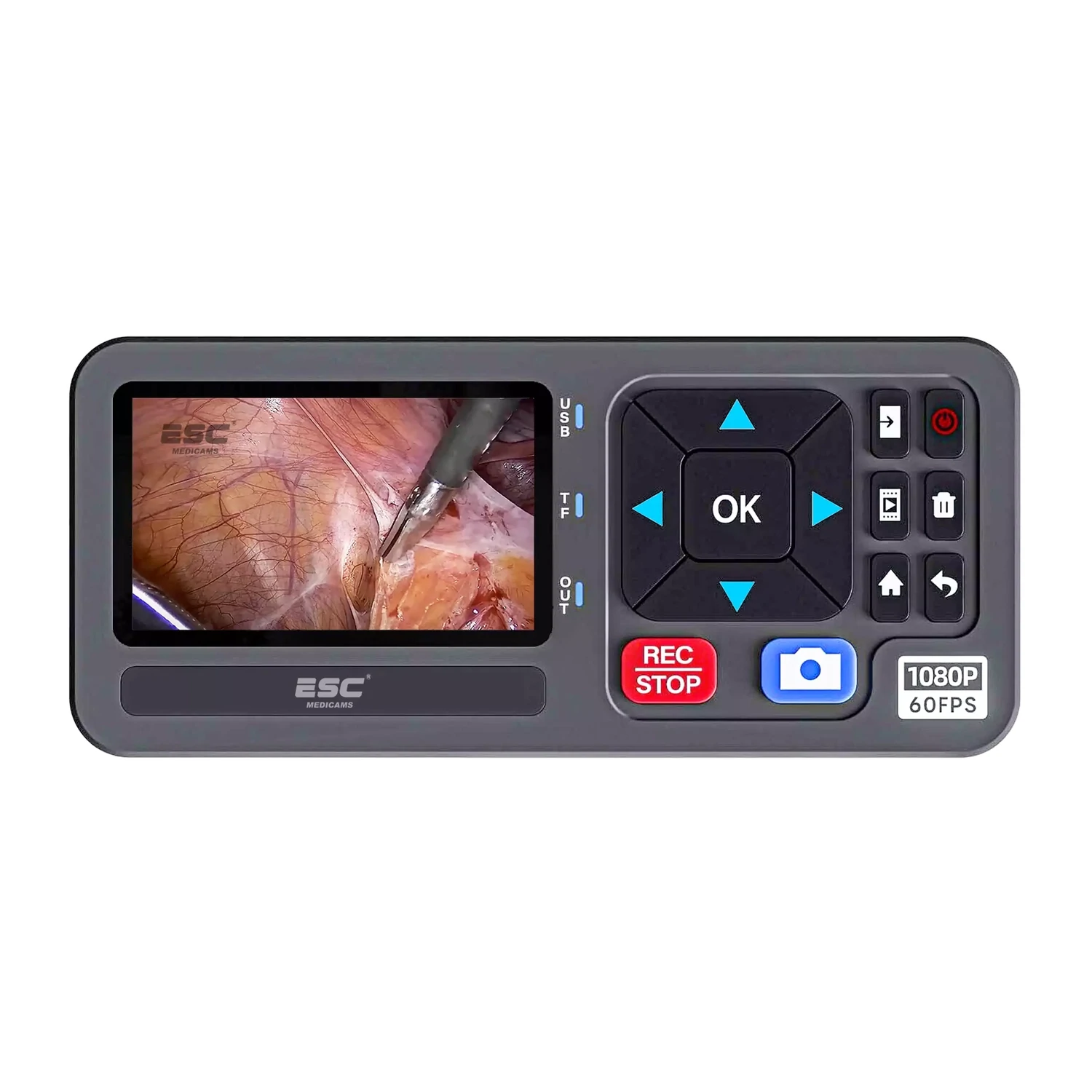

Features of ESC Medicams Medical Surgical Recorder with 4k input resolution to Record and Capture Endoscopy and Laparoscopy procedures.
- Customizable Settings: Tailor recording preferences and display options to suit specific surgical procedures and user preferences, maximizing versatility.
- Data Management: Efficient storage and retrieval of recorded data, facilitating post-operative review and analysis.
- Enhanced Visibility: Improve surgical documentation with clear and detailed visualization of procedures, enhancing accuracy and completeness.
- Real-time Feedback: Instantly review surgical events as they occur, enabling immediate adjustments and interventions as needed.
- Efficient Communication: Share recorded procedures with colleagues for consultation and collaboration, fostering interdisciplinary teamwork and knowledge sharing.
- Streamlined Workflow: Simplify documentation processes with an all-in-one solution, reducing administrative burden and improving efficiency.
- Optimized Training: Utilize recorded procedures for training purposes, enhancing educational opportunities for medical professionals.
Features:
* HDMI/VGA/YPbPr/CVBS Input
* HDMI 1080p Loop-out
* Recording in 720p/1080p
* Schedule Recording
* Support Snapshot in Recording
* USB Drive or TF Card Storage
* Support Playback
* Remote Control
* Compact and portable
* Easy to use
Specifications:
* Video Input (Switchable): 1xHDMI, 1xVGA, 1xCVBS, 1xYPbPr
* Video Resolution: 4096x2160p30, 1920x1080 at 60P/50p, 1920x1080 at 60i/50i/1280x720 at 60p/50p 720x576i/720x480i
* Loop-out: 1xHDMI (1080p)
* Audio: HDMI/RCA Audio/External Line In
* Display Screen: 3 Inch
* Remote Control: Yes
* Screenshot in Recording: Yes
* Playback: Yes
Alone Mode:
* Record Resolution: 1920x1080/1280x720/1280x1024/1024x768
* Storage Device: USB Drive (up to 512G), Hard disk (up to 2T); SD card (up to 512G)
* Storage File System: FAT32/exFAT/NTFS
* Record Format: MP4 (H.264 Codec)
* Video Bitrate: Low 4MB/Mid 10MB/High 18MB
* Audio Bitrate: 128KB
* Size of Each File: 4G (FAT32) or 16G (NTFS/exFAT)
* Schedule Recording: Support
Computer Mode:
* Record Resolution: 1920x1080/1280x720/1280x1024/1024x768
* Compatible UVC/UAC: Yes
* Compatible System: For Win10/Mac OS/Linux
* Compatibility with 3rd application software: For OBS/Xsplit/Wirecast/FLME/QuickTime/VLC/Potplayer/Skype
* Attached Software: UXplayer (buy separately)
General:
* Language: English/Chinese/Japanese/Italian
* Dimension (WxLxH): 158 x 70 x 25mm/6.2 x 2.8 x 1"
* Net Weight: 0.18kg/0.4lb
* Temperature: 0-55Ć¢ĀĀ (Working); -20 to 80Ć¢ĀĀ (Storage)
* Power/Consumption: 12V DC 1.0A/5W
Note:
* It can also be powered by series F batteries, including NP-F550/750/970. Batteries are not included in the package.
